Our dedicated pattern shop produces patterns for GRP moulding, foundry casting and composite tooling entirely in-house. We work with hand crafting by our master pattern maker, CNC routing and 3D printing — choosing the most appropriate method for each project. We produce concept models, prototypes, foundry patterns, GRP patterns and additive manufactured tooling, all finished to the customer's specification.

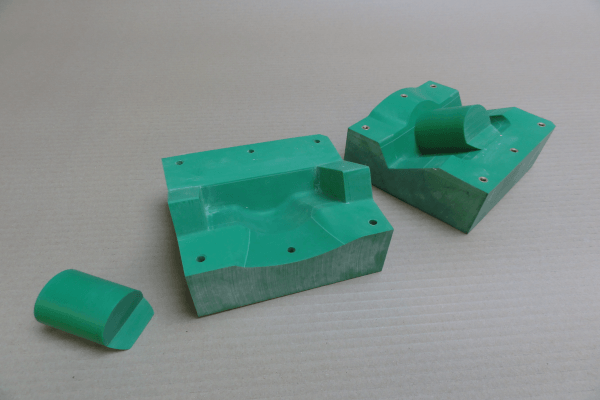

Three Piece Rubber insert Pattern
This three piece tooling was manufactured from a pattern making resin board to produce removable rubber inserts in a larger solid surface tool.

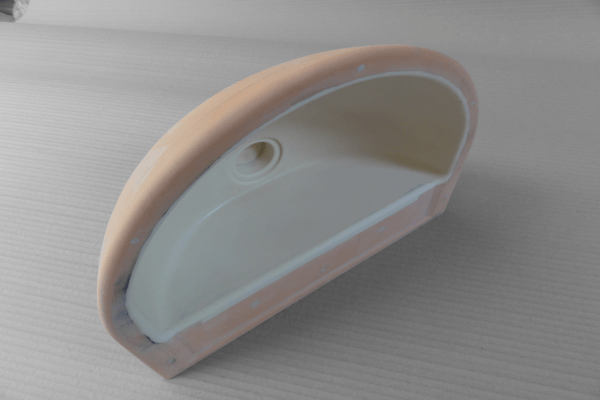

Solid Surface Sink Pattern
The combination of model board and Polyurethane Resin were used to produced the pattern for a Solid Surface Basin

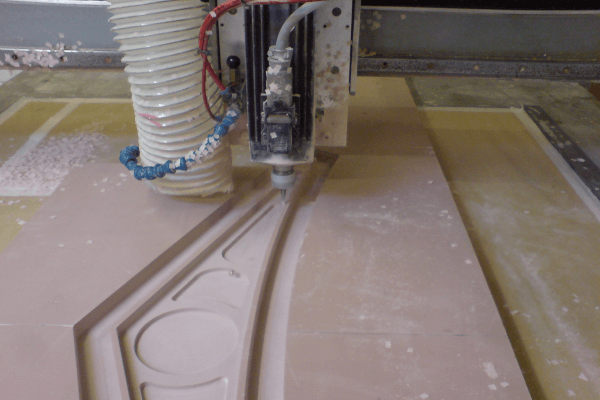

Bracket CNC Foundry Pattern
We manufactured this foundry pattern using our 3-axis CNC Router to produce decorative brackets for a prestigious conservatory company.

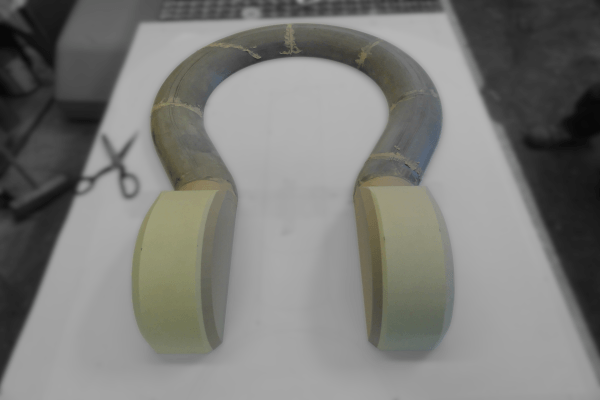

Additive Manufactured Anchor Shackle
With the aid of our 3d printer we produced this large Shackle Pattern, we applied a polyester high build primer to create a uniform finish then applied a final polyester primer coat to a light texture to replicate a cast iron effect. The completed component now hangs from the anchor attached to HMS Warrior in Portsmouth Harbour.

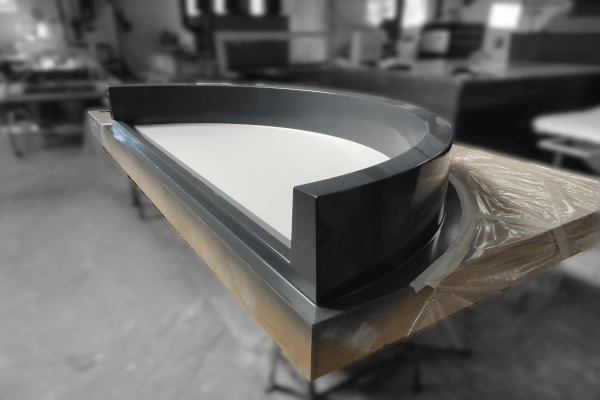

Water Feature Pattern
A half pattern was produced to enable a single mould to be manufactured, from this mould two GRP Components were made, once brought together this made a circular water trough that contained of decorative water feature ready in time for the Chelsea Flower Show.
